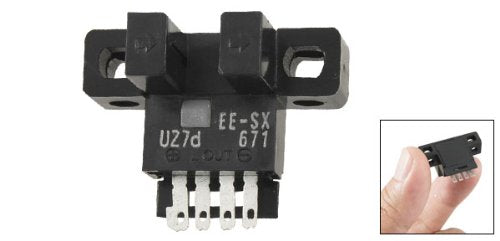

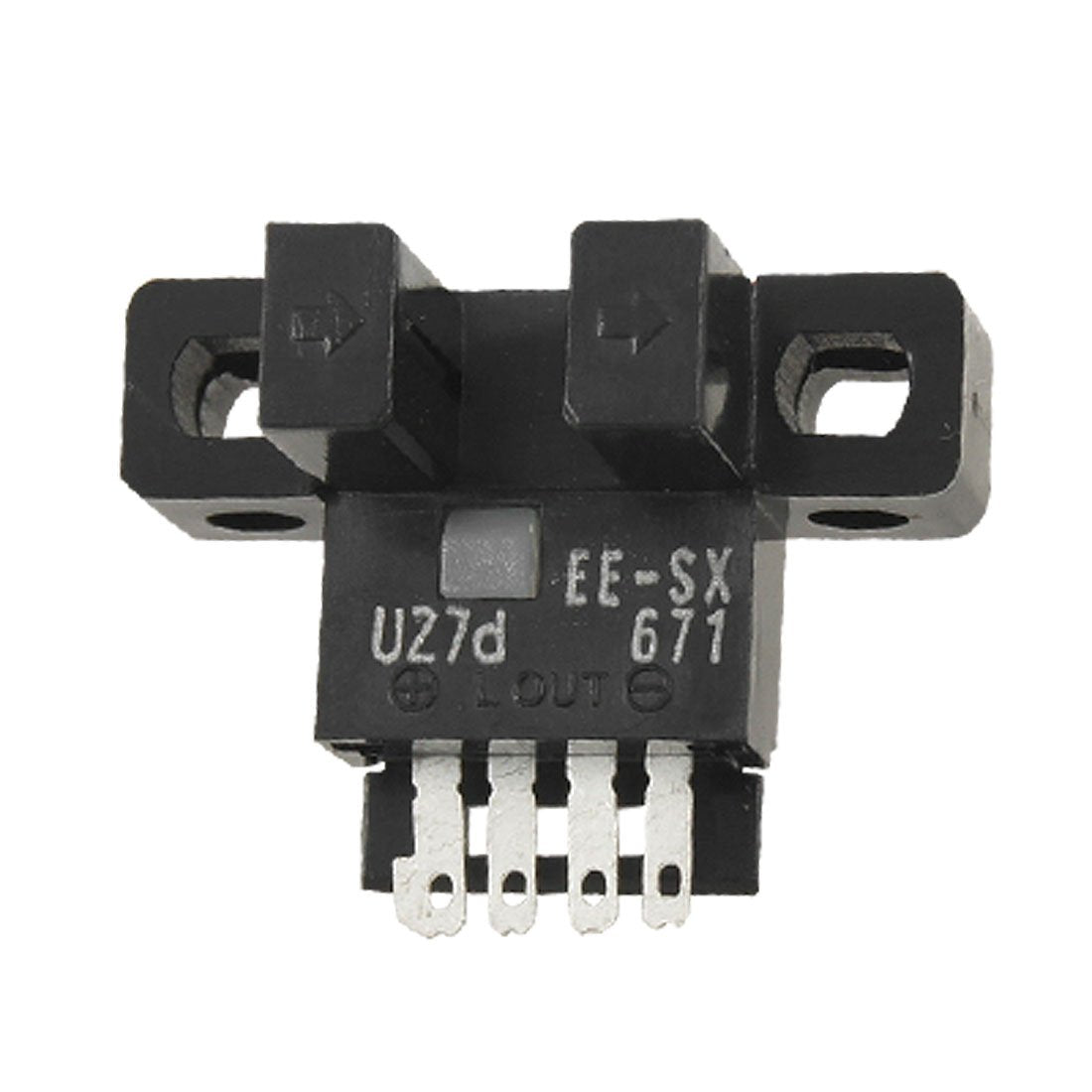

Ee-Sx671 L Type Npn Photo Micro Photoelectric Switch

Product Name : Photo Micro Sensor Switch;Model : Ee-Sx671;Type : L Type;Light Source : Infrared Led (Pulse-Modulated) With A Peak Wavelength Of 940 Nm.
Control Output : Npn Open Collector Output Dc5-24V 100Ma Below, Residual Voltage Below 0.8V(When Load Current 100Ma), Residual Voltage Below 0.4V(When Load Current 40Ma),;Detection Distance : 5 Mm;Standard Detection Distance : Opaque 2×0.8Mm Above.
Sensor Type : Photoelectric;Temperature Operating : -10 To +55 C;Power Supply Voltage : Dc5-24V+/-10%.
Consume Current : 35Ma Below;Material : Plastic, Electric Parts;Size : 2.6 X 1.8 X 1.6Cm / 1" X 0.7" X 0.6"(L*W*T).
Color : Black;Weight : 3G;Package Content : 1 X Photo Micro Sensor Switch .
