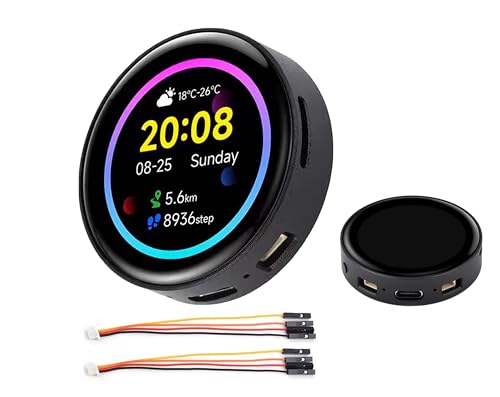

Esp32-S3 1.43Inch Amoled Display Development Board, 466X466 Resolution 16.7M Color Qspi Interface, Esp32 With Capacitive Touch Amoled Round Lcd, Support 2.4 Ghz Wi-Fi And Ble 5, With Cnc Metal Case

Screen Size|1.28240240|Response Time|5 Milliseconds.

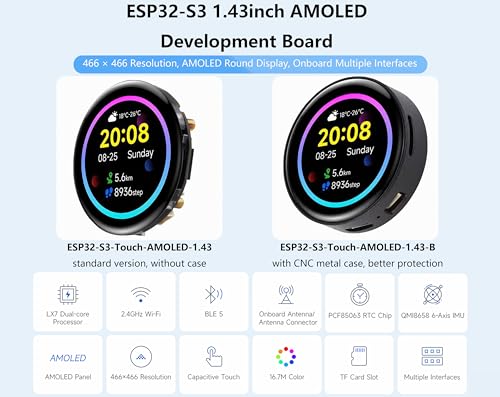

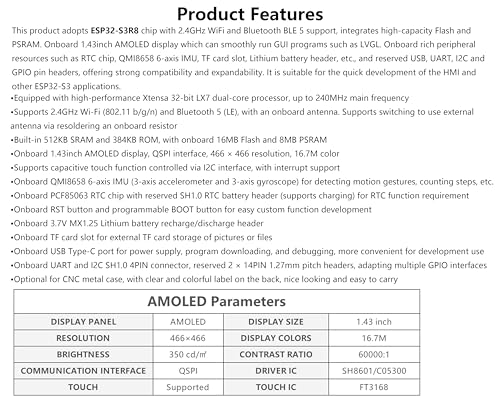

Esp32-S3 1.43Inch Amoled Development Board (With Cnc Metal Case), Equipped With High-Performance Xtensa 32-Bit Lx7 Dual-Core Processor, Up To 240Mhz Main Frequency. Supports 2.4Ghz Wi-Fi (802.11 B/G/N) And Bluetooth 5 (Le), With An Onboard Antenna.
Supports Switching To Use External Antenna Via Resoldering An Onboard Resistor. Built-In 512Kb Sram And 384Kb Rom, With Onboard 16Mb Flash And 8Mb Psram.
Onboard 1.43Inch Amoled Display, Qspi Interface, 466 × 466 Resolution. 178° Wide Viewing Angle. Excellent Display Performance, 16.7M Color, Wide Viewing Angle. Supports Capacitive Touch Function Controlled Via I2C Interface, With Interrupt Support.
Onboard Multiple Interfaces: Onboard Qmi8658 6-Axis Imu (3-Axis Accelerometer And 3-Axis Gyroscope) For Detecting Motion Gestures, Counting Steps, Etc. Onboard Pcf85063 R.
T.
C Chip With Reserved Sh1.0 Ba -Tte Y Header (Supports Charging) For R.
T.
C Function Requirement.
Onboard Rst Button And Programmable Boot Button For Easy Custom Function Development. Onboard 3.7V Mx1.25 Ba -Tte Y Recharge/Discharge Header. Onboard Tf Card Slot For External Tf Card Storage Of Pictures Or Files.
Onboard Usb Type-C Port For Power Supply, Program Downloading, And Debugging, More Convenient For Development Use. Onboard Uart And I2C Sh1.0 4Pin Connector, Reserved 2 × 14Pin 1.27Mm Pitch Headers, Adapting Multiple Gpio Interfaces.
Adopts Amoled Screen. The Next-Generation Display Technology, Compared To Those Traditional Lcd Displays, The Amoled Screen Features Precise Light-Control Capability, Representing More Delicate Colors, More Picture Details, And More Vivid Video Image.
Currently Provides Two Development Tools And Frameworks, Arduino Ide And Esp-Idf, Providing Flexible Development Options, You Can Choose The Right Development Tool According To Your Project Needs And Personal Habits. Please Check: N9.Cl/Enjbl .
