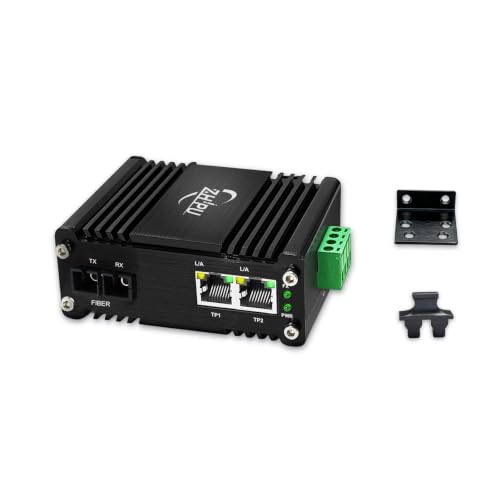

Industrial 2 Ports Gigabit Media Converter, 1 Sc 2 Rj45 Fiber Ethernet Switch Single Mode 20Km, Dc12~48V Input Ip40 Din Rail/Wall Mount For Data Center/Television Broadcasting/Secmon

Maximum Supply Voltage|57 Volts|Minimum Supply Voltage|9 Volts|Mounting Type|Din Rail|Number Of Pins|18.

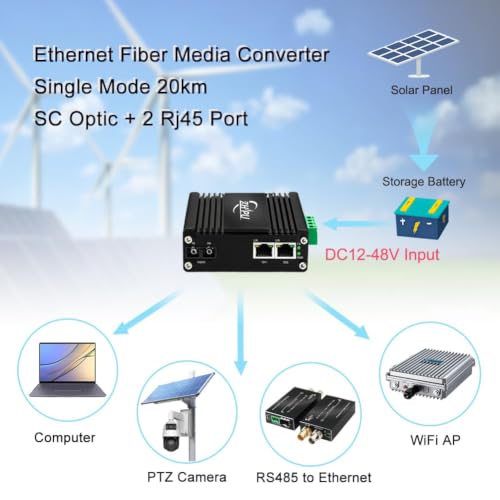

Sc Media Converter Can Extend The Ip Ethernet Signal Up To 12.43 Miles (20Km) Over Single Mode Dual-Fiber Cable. Achieve High-Quality Long-Distance Data/Signal/Video Transmission.

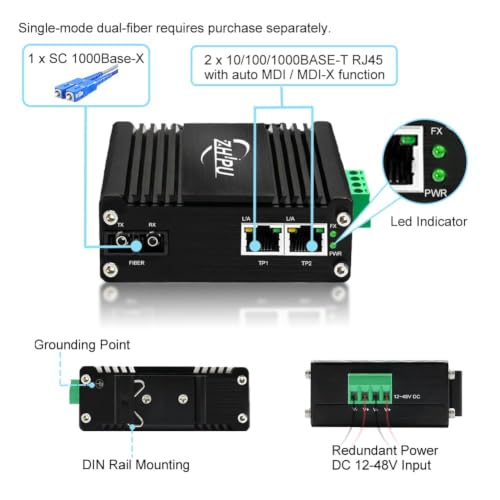

- 2-Port 10/100/1000Base-T And 1-Port 1000Base-X Fiber With Auto Mdi / Mdi-X Function And Support Full-Duplex.

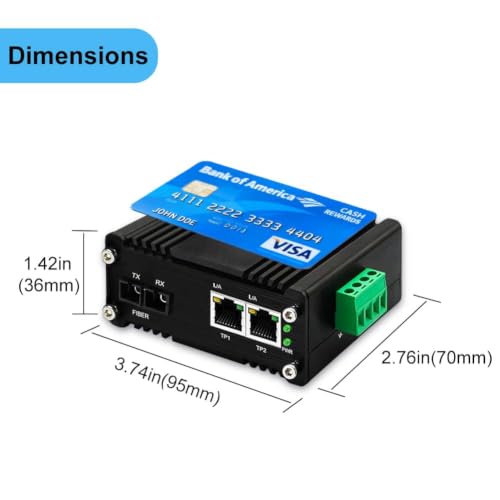

Dc12-48V Input, Support 2 Channel Redundant Power Input, 8-Pin Simultaneous Power Supply (1/2/4/5 Positive, 3/6/7/8 Negative). 6Kv Surge Protection Capability. Operate Under The Temperature Range From -40°F To 167°F. Small Size 3.74×2.76×1.42In (90×70×36Mm).
- Support Rail Installation And Wall Mounting. Suitable For Data Centers, Computer Rooms And Switches Or Routers Located Inside The Cabinet.
