Industrial Gigabit 90W Poe++ Splitter With Ieee802.3Bt Poe And Dc 5/9/12/24V Output, Din Rail Mounting, Power Supply For Ptz Cameras, Access Control Systems

Bt90W Poe Splitter - Split 90W Ieee802.3Bt Poe To Ieee802.3Bt Poe And Dc Power Outputs, Max 72W In Total.
Ieee802.3Bt Poe Output - 1 X Gigabit Ieee802.3Bt Poe Outout. Active Poe Follows Pd Detection -≫ Classisication Type -≫ Power On Procedures To Prevent Stanard Pd Device From Damaging. So Non-Poe Devices Are Also Supported.
5V/9V/12V/24V Dc Output - 1 X Dc 5V/14A Or 9V/7.8A Or 12V/5.9A Or 24V/3A Switchable Output(Terminal Blocks).

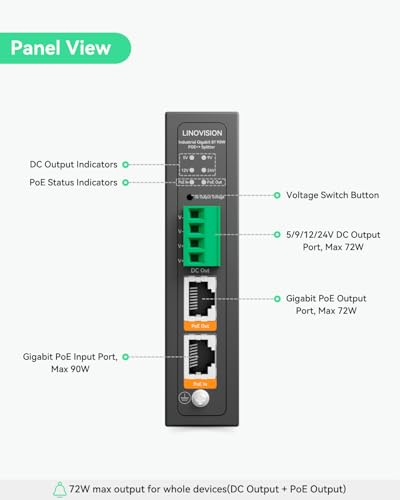

Intelligent Led Indicator - Shows 5V/9V/12V/24V Dc Output. Help To Efficiently Control How Much Power Is Output.
Rugged Design - For Harsh Environment With Wide Temperature Range Between -40 ~ 167 (-40 ~ 75 ). Short-Circuit Protection. Thermal Cut. Din Rail Mount.

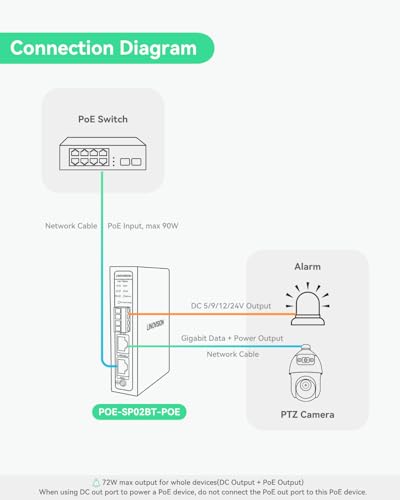

Applications - Provide A Sharded 72W Power To Poe Devices Or Non-Poe Devices Simultaneously, Like The Outdoor Ptz Camera With Extra Wiper Or Ir, Ip Cameras, Video Server, Ap, Led Lighting, Voip Phone, Etc.
Noted - Poe-Sp02Bt-Poe Needs To Work With Standard Ieee802.3Bt/At Standard Poe Switches, Like Poe-Sw508G(.
