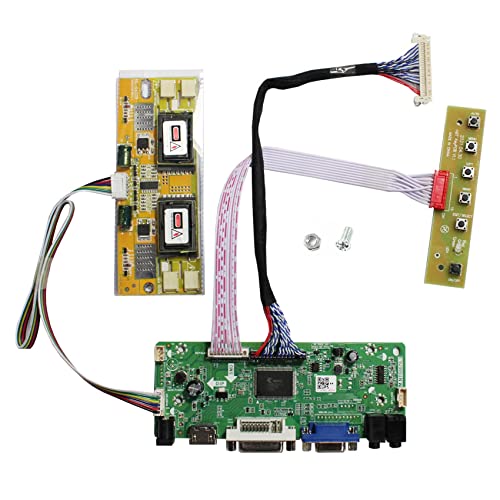

Lvds Controller Board 30 Pins M.Nt68676 For 17" 19" 1280X1024 M170Eg01 M170En01 M170En06 M170Etn01 1 Lcd Gaming Screen Panel

Lcd Driver Board Work For 1280X1024 30 Pins 5V Lvds Lcd Display. Video Input: H-D Vga Dvi ,Audio Output: Speaker Connector ( 8Ohm 2W 4Pin Ph2.0 Connection).
Compatible Screen Models 17" Ltm170Eu Ltm170Eh Ltm170E5 Ltm170E6 Hsd170Me13 M170Eg01 M170Eg02 M170En01 M170En05 M170En06 Lm170E03.
Compatible Screen Models 19" Lm190E02 Lm190E03 Lm190E08 G190Eg01 M190Eg02 M190Eg03 M190En01 Hsd190Me11 Hsd190Me12.

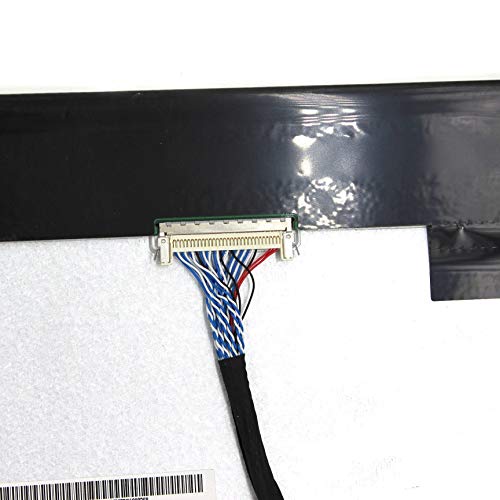

Plug And PlayConnecting The Cables And Ports As Link Pictures, Power On ,Enter Into Signal,The Screen Can Be Lit Up.Pls Use In Insulated Environment To Avoid Short Road.
Input Power Supply12V Dc More Than 3A ,Port Size :5.5X2.1Mm, Pls Prepare Power Adapter By Yourself.

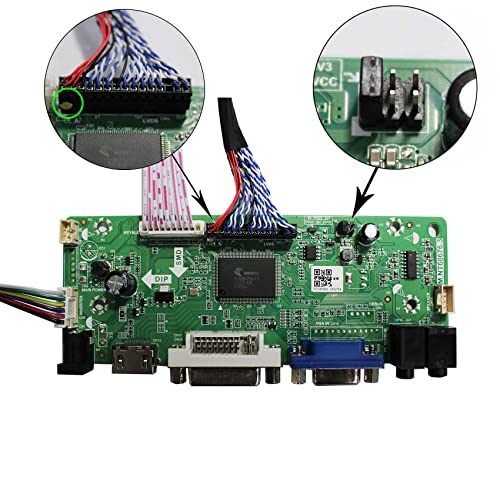

Board Failure Self-Check: Directly Power On Board ,The Led Light Green/Red Means Board Can Work Normally ;Then Connect Screen Signal Port, No Enter Signal ,The"No Siganl" Words Showing On Screen Means The Problem Comes From Signal ,Pls Try With Other Signal Cable /Resource; White/Black Screen ,Check Screen Signal Port Connecting/Resolution/5V Jumper Pin/Signal Resource.
